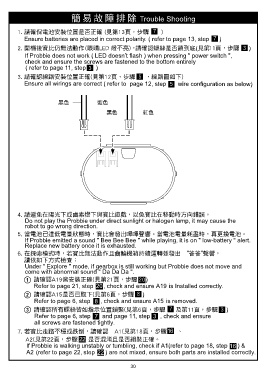

簡易故障排 除 Trouble Shooting
7
1. 請確保電池安裝位置是否正確 (見第13頁，步驟 )
Ensure batteries are placed in correct polarity. ( refer to page 13, step )
7
3
2. 開機後寶比仍無法動作(眼睛LED 燈不亮)， 請確認螺絲是否鎖到底 (見第11頁，步驟 )
If P r obbie does not work ( LED doesn’t flash ) when pressing " power switch ",
check and ensure the screws are fastened to the bottom entirely
( refer to page 11, step )
3
5
3. 請確認線路安裝位置正確(見第12頁，步驟 ，線路圖如下)
Ensure all wirings are correct ( refer to page 12, step wire configuration as below)
5
黑色 藍色
黑色 紅色

4. 請避免在陽光下或鹵素燈下與寶比遊戲，以免寶比在移動時方向錯誤。
Do not play the Probbie under direct sunlight or halogen lamp, it may cause the
robot to go wrong direction.
5. 當電池已達低電量狀態時，寶比會發出嗶嗶聲響。當電池電量耗盡時，再更換電池。
If Probbie emitted a sound " Bee Bee Bee " while playing, it is on " low-battery " alert.
Replace new battery once it is exhausted.
6. 在探索模式時，若寶比無法動作且齒輪機箱持續運轉並發出 ”答答”聲響，
請依如下方式檢查：
Under " Explore " mode, if gearbox is still working but Probbie does not move and
come with abnormal sound " Da Da Da ".
1 請確認A19皆安裝正確(見第21頁，步驟 )
20
Refer to page 21, step , check and ensure A19 is Installed correctly.
20
8
2 請確認A15是否已取下(見第6頁，步驟 )
Refer to page 6, step , check and ensure A15 is removed.
8
7
3
3 請確認所有螺絲皆如指示位置鎖緊(見第6頁，步驟 及第11頁，步驟 )
7
3
Refer to page 6, step and page 11, step , check and ensure
all screws are fastened tightly.
7. 若寶比走路不穩或跌倒，請確認 A1(見第18頁，步驟 16 、
A2(見第22頁，步驟 22 是否混淆且是否組裝正確。
16
If Probbie is walking unstably or tumbling, check if A1(refer to page 18, step ) &
A2 (refer to page 22, step ) are not mixed, ensure both parts are installed correctly.
22
