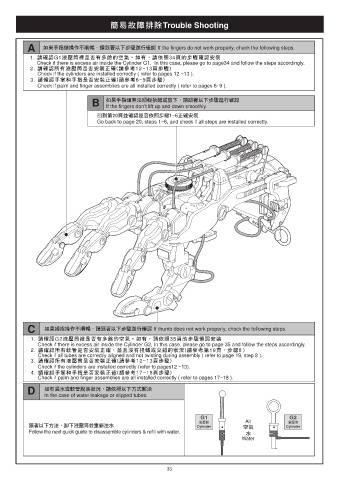

ᔊ׸݂ღરৰTrouble Shooting

A ν؈˓ܸ᎘዁Ъʔන࿫dሗ༧ഹ˸ɨӉ᜷ආБᆽႩ If the fingers do not work properly, check the following steps.

1. ሗᆽႩG1૰Ꮐഇ༁݊щϞεቱٙ٤ंfνϞdሗԱ๫34ࠫٙӉ᜷ᆽႩτༀ
Check if there is excess air inside the Cylinder G1. In this case, please go to page34 and follow the steps accordingly.
2. ሗᆽႩהϞ૰Ꮐഇ݊щτༀ͍ᆽ ሗਞϽ12~13ࠫӉ᜷
Check if the cylinders are installed correctly ( refer to pages 12 ~13 ).
3. ሗᆽႩ˓౛ձ˓ܸ݊щτༀ͍ᆽ ሗਞϽ6~9ࠫӉ᜷

Check if palm and finger assemblies are all installed correctly ( refer to pages 6_9 ).
B ν؈˓ܸ᎘ೌجන࿫ױৎא׳ɨdሗ༧ഹ˸ɨӉ᜷ආБᆽႩ
If the fingers don’t lift up and down smoothly.

ΫՑୋ ࠫԨᆽႩ݊щԱ๫Ӊ᜷1~6͍ᆽτༀ
Go back to page 20, steps 1~6, and check if all steps are installed correctly.

C ν؈֍ܸ዁Ъʔන࿫dሗ༧ഹ˸ɨӉ᜷ආБᆽႩ If thumb does not work properly, check the following steps.

1. ሗᆽႩG2૰Ꮐഇ༁݊щϞεቱٙ٤ंfνϞdሗԱ๫35ࠫٙӉ᜷ᆽႩτༀ
Check if there is excess air inside the Cylinder G2, In this case, please go to page 35 and follow the steps accordingly.
2. ሗᆽႩהϞழ၍݊щτༀ͍ᆽdԨ˲ӚϞҩᔷאʹ፹ًٙر ሗਞϽୋ19ࠫdӉ᜷8
Check if all tubes are correctly aligned and not twisting during assembly ( refer to page 19, step 8 ).
3. ሗᆽႩהϞ૰Ꮐഇ݊щτༀ͍ᆽ ሗਞϽ12~13ࠫӉ᜷
Check if the cylinders are installed correctly (refer to pages12 ~13).
4. ሗᆽႩ˓౛ձ˓ܸ݊щτༀ͍ᆽ ሗਞϽ17~18ࠫӉ᜷
Check if palm and finger assemblies are all installed correctly ( refer to pages 17~18 ).
D νϞဍ˥אழ၍୭ໝًرdሗԱ๫˸ɨ˙ό༆Ӕ
In the case of water leakage or slipped tubes.

G1 G2
૰Ꮐഇ Air ૰Ꮐഇ
༧ഹ˸ɨ˙جd՝ɨ૰ᏀഇԨࠠอء˥ Cylinder ٤ं Cylinder
Follow the next quick guide to disassemble cylinders & refill with water. ˥
Water

33
