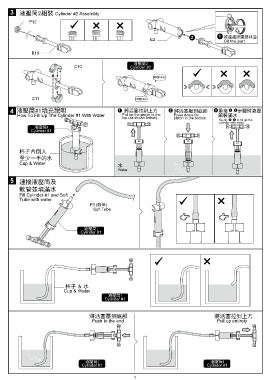

3 液壓筒2組裝 Cylinder #2 Assembly

P12

2 1 推進處周圍請抹油
E2 Oil the part

B19

液壓筒2
C10 Cylinder #2

咔噠Click

C11 咔噠Click

4 液壓筒#1填充說明 1 將活塞拉到上方 2 將活塞壓到底部 3 重複 步驟將液壓
2
3
How To Fill Up The Cylinder #1 With Water Pull up the piston to the Press down the 筒裝滿水
top (as shown below).
piston to the bottom.
Re-do to fill up the
2
3
cylinder with water
液壓筒1
Cylinder #1
杯子內倒入
至少一半的水
Cup & Water
水
Water

5 連接液壓筒及

軟管並填滿水
Fill Cylinder #1 and Soft
Tube with water
P3 (軟管)
Soft Tube

液壓筒1
Cylinder #1

杯子 & 水
Cup & Water
液壓筒1
Cylinder #1

將活塞壓到底部 將活塞拉到上方
Push to the end Pull up entirely

液壓筒1 液壓筒1
Cylinder #1 Cylinder #1

5
