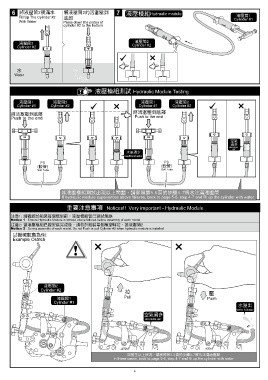

6 將液壓筒2裝滿水 將液壓筒2的活塞壓到 7 液壓模組 Hydraulic module
液壓筒1
Fill Up The Cylinder #2 底部 Cylinder #1
With Water Press down the piston of
cylinder #2 to the bottom

液壓筒2
液壓筒2 Cylinder #2
Cylinder #2

水
Water

液壓模組測試 Hydraulic Module Testing

液壓筒1 液壓筒2 液壓筒1 液壓筒2
Cylinder #1 Cylinder #2 Cylinder #1 Cylinder #2
將活塞壓到底部 將活塞壓到底部
Push to the end Push to the end

空氣
過多
excess
air
水量過少
insufficient water
P3 P3
(軟管) (軟管)
Soft Tube Soft Tube

如液壓模組測試出現以上問題，請參照第5-6頁的步驟4-7將水注滿液壓筒
If hydraulic module experiences above failures, back to page 5-6, step 4-7 and fill up the cylinder with water

重要注意事項 Notices!! Very important - Hydraulic Module
注意1 : 請確認於組裝每個模型前，液壓模組皆已測試無誤
Notice 1 : Ensure Hydraulic Module is without above failures before assembly of each model
注意2 : 當液壓模組已經安裝完成後，請勿於組裝每個模型時拉、推液壓筒2
Notice 2 : During assembly of each model, Do not Push or pull Cylinder #2 when hydraulic module is installed
以機械鴕鳥為例:
Example Ostrich

液壓筒2
Cylinder #2
拉 壓
液壓筒1 Pull Push
Cylinder #1
水溢出
water leakage
空氣過多
excess air

如發生以上狀況，請參照第5-6頁的步驟4-7將水注滿液壓筒
In these cases, back to page 5-6, step 4-7 and fill up the cylinder with water
